◆用途

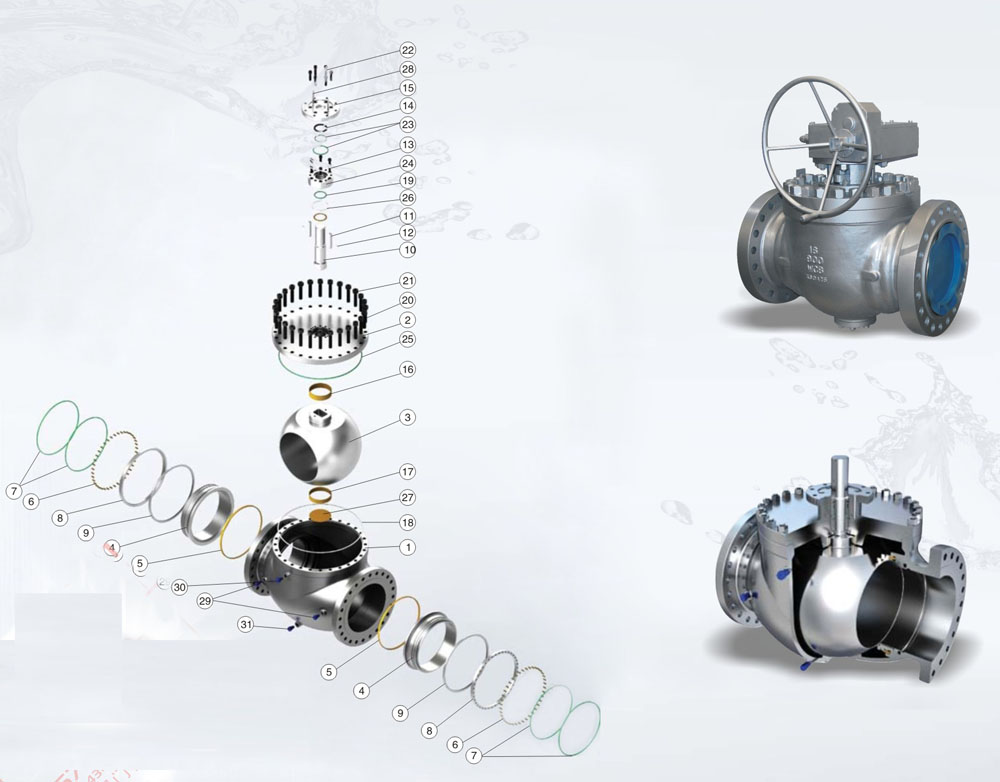

◆主要零部件
|
序号 |
零件名称 |
序号 |
零件名称 |
|
1 |
阀体 |
17 |
衬套 |
|
2 |
阔盖 |
18 |
密封垫 |
|
3 |
球体 |
19 |
密封塑 |
|
4 |
阀座 |
20 |
螺柱 |
|
5 |
密封圈 |
21 |
螺母 |
|
6 |
弹簧 |
22 |
螺钉 |
|
7 |
O型圈 |
23 |
0型圈 |
|
8 |
螺钉 |
24 |
0型圈 |
|
9 |
挡圈 |
25 |
0型圈 |
|
10 |
上阀杆 |
26 |
止推里 |
|
11 |
键 |
27 |
摩擦垫 |
|
12 |
螺钉 |
28 |
销 |
|
13 |
压盖 |
29 |
注脂阀 |
|
14 |
填料 |
30 |
放空阀 |
|
15 |
连接盘 |
31 |
排污阀 |
|
16 |
衬套 |
- |
- |

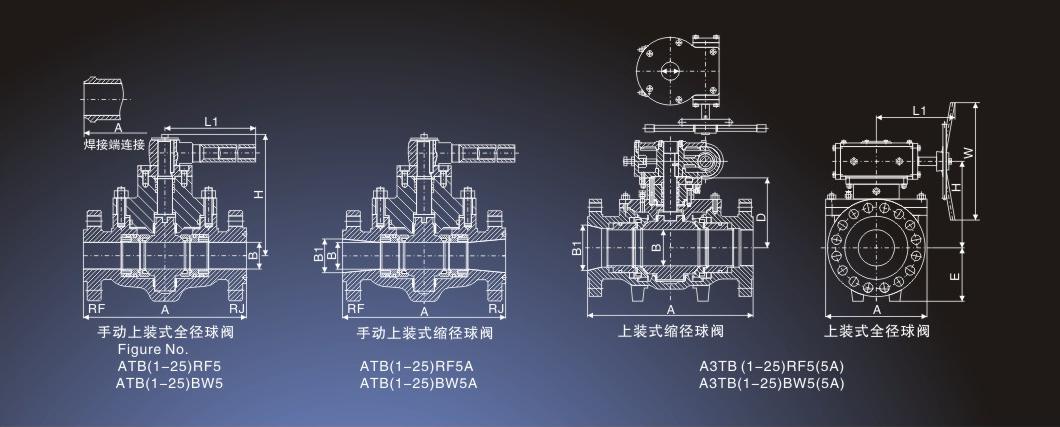

◆主要外形连接尺寸 Class 150
|
DN(mm) |
NPS(in) |
A |
B |
B1 |
D |
E |
F |
H |
L1 |
W |
WT (Kg) |
||
|
RF |
RJ |
WE |
|||||||||||
|
50x40 |
2x11/2 |
292 |
295 |
292 |
38 |
51 |
/ |
85 |
180 |
212 |
450 |
/ |
25 |
|
50 |
2 |
292 |
295 |
292 |
51 |
51 |
/ |
85 |
180 |
212 |
450 |
/ |
28 |
|
80x50 |
3x2 |
356 |
359 |
356 |
51 |
77 |
/ |
85 |
180 |
212 |
450 |
/ |
37 |
|
80 |
3 |
356 |
359 |
356 |
77 |
77 |
/ |
112 |
230 |
228 |
600 |
/ |
55 |
|
100x80 |
4x3 |
432 |
435 |
432 |
77 |
102 |
/ |
112 |
230 |
228 |
600 |
/ |
75 |
|
100 |
4 |
432 |
435 |
432 |
102 |
102 |
/ |
145 |
283 |
272 |
600 |
/ |
105 |
|
150x100 |
6x4 |
559 |
562 |
559 |
102 |
152 |
|
145 |
283 |
272 |
600 |
/ |
140 |
|
150 |
6 |
559 |
562 |
559 |
152 |
152 |
281 |
220 |
325 |
333 |
297 |
350 |
235 |
|
200x150 |
8x6 |
660 |
664 |
660 |
152 |
203 |
281 |
220 |
325 |
333 |
297 |
350 |
265 |
|
200 |
8 |
660 |
664 |
660 |
203 |
203 |
320 |
260 |
405 |
384 |
360 |
500 |
430 |
|
250x200 |
10x8 |
787 |
791 |
787 |
203 |
254 |
320 |
260 |
405 |
384 |
360 |
500 |
480 |
|
250 |
10 |
787 |
791 |
787 |
254 |
254 |
360 |
311 |
490 |
424 |
360 |
500 |
475 |
|
300x250 |
12x10 |
838 |
841 |
838 |
254 |
305 |
360 |
311 |
490 |
424 |
360 |
500 |
510 |
|
350x250 |
14x10 |
889 |
892 |
889 |
254 |
337 |
360 |
311 |
490 |
424 |
360 |
500 |
690 |
|
300 |
12 |
838 |
841 |
838 |
305 |
305 |
403 |
366 |
570 |
467 |
340 |
700 |
610 |
|
350x300 |
14x12 |
889 |
892 |
889 |
305 |
337 |
403 |
366 |
570 |
467 |
340 |
700 |
820 |
|
50x40 |
2x11/2 |
292 |
295 |
292 |
38 |
51 |
/
|
85 |
180 |
212 |
450 |
/ |
29 |
|
50 |
2 |
292 |
295 |
292 |
51 |
51 |
/ |
85 |
180 |
212 |
450 |
/ |
33 |
|
80x50 |
3x2 |
356 |
359 |
356 |
51 |
77 |
/ |
85 |
180 |
212 |
450 |
/ |
43 |
|
80 |
3 |
356 |
359 |
356 |
77 |
77 |
/ |
112 |
230 |
228 |
600 |
/ |
64 |
|
100x80 |
4x3 |
432 |
435 |
432 |
77 |
102 |
/ |
112 |
230 |
228 |
600 |
/ |
88 |
|
100 |
4 |
432 |
435 |
432 |
102 |
102 |
/ |
145 |
283 |
272 |
1000 |
/ |
123 |
|
150x100 |
6x4 |
559 |
562 |
559 |
102 |
152 |
/ |
145 |
283 |
272 |
1000 |
/ |
164 |
|
150 |
6 |
559 |
562 |
559 |
152 |
152 |
281 |
220 |
325 |
345 |
360 |
500 |
275 |
|
200x150 |
8x6 |
660 |
664 |
660 |
152 |
203 |
281 |
220 |
325 |
345 |
360 |
500 |
311 |
|
200 |
8 |
660、 |
664 |
660 |
203 |
203 |
330 |
260 |
405 |
385 |
340 |
700 |
505 |
|
250x200 |
10x8 |
787 |
791 |
787 |
203 |
254 |
330 |
260 |
405 |
385 |
340 |
700 |
563 |
|
250 |
10 |
787 |
791 |
787 |
254 |
254 |
371 |
311 |
490 |
426 |
340 |
700 |
557 |
|
300x250 |
12x10 |
838 |
841 |
838 |
254 |
305 |
371 |
311 |
490 |
426 |
340 |
700 |
598 |
|
350x250 |
14x10 |
889 |
892 |
889 |
254 |
337 |
371 |
311 |
490 |
426 |
340 |
700 |
809 |
|
300 |
12 |
838 |
841 |
838 |
305 |
305 |
418 |
366 |
570 |
473 |
340 |
700 |
715 |
|
350x300 |
14x12 |
889 |
892 |
889 |
305 |
337 |
418 |
366 |
570 |
473 |
340 |
700 |
960 |
